What Is a Strip Cutting Machine and How Does It Work?



Why Strip Cutting Is Important in Garment Manufacturing

To understand the value of a strip cutting machine, consider what happens when strip cutting is done manually.

A worker uses a ruler and rotary cutter or scissors to measure and cut strips from a fabric roll. On a good day, they achieve ±1–2mm accuracy. On a tired afternoon, that margin widens. Over a shift, inconsistencies accumulate. Strip widths vary slightly from piece to piece. The sewing operator downstream has to compensate — slowing down, adjusting tension, or reworking pieces that don't meet spec.

Now multiply that problem across hundreds or thousands of strips per day.

Production consistency is the first major benefit of mechanized strip cutting. When a machine cuts every strip to the same programmed width — typically achieving tolerances within ±0.1mm — the entire sewing line benefits. Seam allowances remain uniform. Finished garments look better. Rejection rates fall.

Fabric utilization improves significantly as well. Automatic strip cutting machines feed fabric under controlled tension and alignment, minimizing the edge waste and off-cut scrap that occur with manual handling. In factories processing expensive technical fabrics or performance textiles, material savings of even 2–3% can represent substantial cost reductions over a year.

Faster throughput is another direct benefit. A modern automatic fabric strip cutting machine can process fabric at rates of 5 to 15 meters per minute depending on material type and strip width, far exceeding what a manual cutter can sustain.

Quality improvement flows naturally from consistency. When collar tapes, waistbands, and binding strips are cut precisely, the garments assembled from them look cleaner, sit straighter, and survive quality inspection at higher rates.

Finally, labor savings allow factory owners to redeploy skilled workers to higher-value tasks rather than repetitive cutting operations.

How Does a Strip Cutting Machine Work?

Understanding the process of a strip cutting machine helps production managers specify the right equipment and troubleshoot issues effectively. Here is a detailed step-by-step breakdown of how an automatic strip cutting machine operates.

Step 1: Fabric Feeding

The process begins at the fabric feeding unit. The operator loads a fabric roll onto the unwinding stand or feeding rack. The fabric is then drawn forward by motorized feed rollers at a controlled, consistent speed.

In advanced machines, the feeding system includes tension control mechanisms that maintain uniform fabric tension throughout the roll — critical because fabric tension varies naturally as a roll diminishes in diameter. Without tension compensation, strips cut at the start of a roll would be wider or tighter than those cut at the end.

Step 2: Alignment and Positioning

Before reaching the cutting zone, the fabric passes through an alignment system. Edge sensors or guide rails detect the fabric's position and make real-time micro-adjustments to keep the material perfectly straight.

This step is essential. Even a small lateral drift of 0.5mm — invisible to the eye during manual feeding — translates directly into strip width variation. Automatic alignment eliminates this problem, ensuring the fabric enters the cutting zone at exactly the right position every time.

Step 3: Cutting Mechanism

The cutting unit is the heart of the machine. Depending on the machine type, cutting is performed by one of several mechanisms:

• Rotary disc blades: Two or more circular blades positioned at precisely calculated intervals slice through the fabric as it passes. The blade spacing determines the strip width.
• Oscillating blades: Used for thicker or layered materials, these blades move up and down while the fabric advances.
• Ultrasonic cutting: Employed for synthetic fabrics, this method uses high-frequency vibration to seal and cut simultaneously, preventing fraying.

On an automatic strip cutting machine, the blade positions are adjustable via a digital control panel or PLC (Programmable Logic Controller), allowing operators to change strip width settings quickly without mechanical disassembly.

Step 4: Width Control System

Strip width control is managed by the PLC in conjunction with precision servo motors. The operator inputs the desired strip width on a touchscreen or control panel. The servo motor drives the blade carriage or blade spacing mechanism to the exact position.

High-end machines store multiple width presets, allowing operators to switch between different production specifications with a single button press. This reduces changeover time significantly — a key efficiency gain in factories producing multiple garment styles.

Step 5: Collection and Stacking

After cutting, the strips exit the machine through a collection system. Depending on the machine design, strips may be:

• Wound onto individual collection spools
• Laid flat and stacked in a collection bin
• Fed directly into an integrated ironing or folding unit

In strip cutting and ironing machines — increasingly common in modern garment factories — the cut strip immediately enters a folding and ironing section before collection, delivering a finished binding tape or hem strip ready for direct use on the sewing line.

Step 6: Quality Inspection

Most modern industrial strip cutting machines include inline quality monitoring. Photoelectric sensors or vision systems verify strip width consistency in real time. If a strip drifts outside programmed tolerances, the machine generates an alert or halts automatically.

Some advanced machines integrate with factory MES (Manufacturing Execution Systems), logging production data including strip counts, width measurements, and downtime events for quality records and production reporting.

Main Components of a Strip Cutting Machine

A strip cutting machine is a precision system made up of several interconnected components. Understanding each one helps buyers evaluate machine quality and helps maintenance teams keep equipment running at peak performance.

Feeding System
The feeding system includes the unwinding stand, feed rollers, and tension control unit. Feed roller pressure is adjustable to accommodate different fabric weights without crushing delicate materials or losing grip on heavy ones.

Tension Control System
Mechanical or electronic tension controllers maintain consistent fabric tension throughout a roll. Without proper tension control, strip widths drift as the roll diameter changes. High-quality machines use servo-driven tension compensation that responds dynamically to roll weight changes.

Cutting Blades
The cutting blades are typically made from high-speed steel (HSS) or tungsten carbide, ground to precise tolerances. Blade sharpness is critical — dull blades cause fabric distortion, fraying, and width variation. Most industrial machines include an integrated blade sharpening mechanism or easy-access blade replacement design.

Servo Motors
Servo motors control feeding speed, blade positioning, and tension compensation with high precision and repeatability. Unlike conventional induction motors, servo motors respond in milliseconds to control signals, allowing the machine to maintain consistent cutting parameters even as fabric characteristics vary.

PLC Control System
The Programmable Logic Controller is the brain of an automatic strip cutting machine. It coordinates all machine functions, stores production parameters, manages alarm systems, and provides diagnostic data. A well-designed PLC interface allows operators to set up new production runs in minutes.

Sensors
Photoelectric sensors, edge guide sensors, and tension sensors monitor fabric position, roll diameter, and strip width throughout production. Real-time sensor data feeds back into the PLC to maintain cutting accuracy automatically.

Collection Unit
The collection unit receives finished strips and organizes them for transport to the sewing line. Options include spool winding, flat stacking, or direct integration with downstream equipment such as tape ironing or folding machines.

Types of Strip Cutting Machines

Not every factory has the same production volume, fabric variety, or budget. Strip cutting machines are available in three main configurations.

Manual Strip Cutting Machines

Manual strip cutting machines use a hand-operated blade mechanism guided by a fixed fence or ruler to cut strips one at a time. The operator feeds the fabric by hand, maintains alignment manually, and advances the material after each cut.

Advantages: Low cost, minimal maintenance, no power required for basic models, suitable for sampling and short runs.

Disadvantages: Slow throughput, high operator fatigue, significant width variation between strips, limited to single-layer cutting, not suitable for high-volume production.

Best applications: Sample rooms, small tailoring operations, very low-volume specialty cutting.

Semi-Automatic Strip Cutting Machines

Semi-automatic machines motorize the fabric feeding and cutting functions while still requiring operator involvement in loading, alignment, and collection. A basic electronic control panel allows width adjustment without changing physical blade positions.

Advantages: Moderate cost, faster than manual cutting, better consistency than fully manual operation, easier to operate than fully automatic systems.

Disadvantages: Operator still influences output quality through feeding technique, limited to lower production volumes, less suitable for very narrow or very wide strips.

Best applications: Small to medium garment factories, workshops producing multiple fabric types in varied strip widths, factories transitioning from manual to automated cutting.

Fully Automatic Strip Cutting Machines

Fully automatic strip cutting machines handle the entire process — feeding, alignment, tension control, cutting, width adjustment, and collection — under PLC control with minimal operator intervention. The operator loads the fabric roll, enters the production parameters, and monitors the process.

Advantages: Highest throughput, exceptional width consistency (±0.1mm or better), lowest labor requirement per meter of output, suitable for continuous production, capable of processing multiple strips simultaneously, easily integrated with downstream equipment.

Disadvantages: Higher initial investment, requires trained maintenance personnel, may be over-specified for very low-volume operations.

Best applications: Large garment factories, sportswear producers, uniform manufacturers, technical textile operations, any factory requiring consistent high-volume strip production.

Key Benefits of Using an Automatic Strip Cutting Machine

Factories that upgrade from manual or semi-automatic cutting to a fully automatic strip cutting machine consistently report measurable improvements across several operational metrics.

1. Labor Savings
A single automatic strip cutting machine can replace 3 to 6 manual cutting operators, depending on strip width, fabric type, and required output volume. The remaining operator role shifts to machine monitoring rather than physical cutting — reducing fatigue and injury risk.

2. Improved Accuracy
Automatic machines achieve width tolerances of ±0.1mm compared to ±1–2mm typical of skilled manual cutters. This precision reduces rejection rates in downstream sewing operations and improves finished garment quality.

3. Increased Productivity
Modern automatic fabric strip cutting machines operate at feeding speeds of 5 to 20 meters per minute depending on material. This represents a 5x to 10x throughput improvement over manual cutting for many common applications.

4. Reduced Fabric Waste
Precise tension control and alignment reduce edge waste and off-cut scrap. Factories processing expensive performance fabrics report material savings of 2 to 5% after switching to automatic strip cutting — savings that compound significantly over annual production volumes.

5. Better Consistency
Every strip cut by an automatic machine matches the programmed specification. This consistency is especially valuable for operations producing large uniform orders, where any visual variation in binding width or waistband thickness creates visible quality defects.

6. Faster Order Fulfillment
Higher throughput and lower rejection rates combine to accelerate production cycles. Factories report order-to-ship times improving by 10 to 20% after automating strip cutting, improving their competitiveness in fast-turnaround markets.

For a deeper look at how automation transforms specific garment processes, see JockyTech's article on Top 7 Benefits of Using an Automatic Neck Rib Joining Machine in Knitwear Manufacturing — many of the same productivity and quality principles apply.

Industries That Use Strip Cutting Machines

Garment Manufacturing
The broadest and most common application. Strip cutting machines produce collar tape, hem binding, waistbands, and belt loops for shirts, trousers, jackets, and all basic garment categories.

Shirt and Polo Shirt Production
Collar and placket binding is one of the most demanding strip cutting applications. Polo shirt collar tape requires tight width tolerances and smooth edges for clean finished collars — exactly the conditions where automatic cutting outperforms manual methods.

Sportswear Factories
Performance sportswear uses elastic binding, flatlock tape, and reinforcement strips extensively. Many sportswear fabrics — stretch wovens, compression knits, technical synthetics — require ultrasonic or rotary cutting to prevent fraying and distortion.

Uniform Production
Large uniform contracts require thousands of identical binding strips. Consistency across high volumes makes automatic strip cutting essential for uniform manufacturers.

Home Textile Manufacturing
Bedding, curtain binding, pillow edging, and furniture upholstery all require strip cutting. Home textile applications often involve wider strips and heavier materials than garment applications.

Technical Textile Production
Industrial fabrics, filtration media, medical textiles, and safety products often require precision strip cutting with documentation and quality traceability — applications where automatic PLC-controlled machines excel.

Common Materials Processed

Cotton and Cotton Blends
The most common garment fabric. Rotary disc cutting works well for most cotton weights. Heavier denim-weight cotton may require reinforced blade systems.

Polyester and Polyester Blends
Standard in sportswear and uniform production. Polyester cuts cleanly with rotary blades. Heat-sensitive formulations may benefit from ultrasonic cutting to prevent edge fusion.

Nylon
Used in outerwear, bags, and performance garments. Nylon tends to slip under rollers — proper tension control and anti-slip feed surfaces are important for nylon strip cutting.

Spandex / Elastane Blends
Stretch fabrics require specialized tension control to avoid stretching during cutting, which would cause strips to spring back narrower than programmed. Machines designed for elastic fabrics use compensating tension systems.

Denim
Heavy denim requires robust blade systems and reduced feed speeds. Industrial strip cutting machines designed for denim typically feature reinforced blade carriages and heavy-duty feed rollers.

Blended Fabrics
Most modern garment fabrics are blends. Automatic strip cutting machines handle blends well provided blade type and tension settings are matched to the specific fabric construction.

Nonwoven Materials
Interlining, fusible web, and nonwoven technical fabrics are common strip cutting applications. Nonwovens generally cut cleanly and are among the easiest materials for strip cutting machines to process.

Common Problems and Solutions

How to Choose the Right Strip Cutting Machine

Selecting the right industrial strip cutting machine requires evaluating several factors carefully.

Production Volume
Calculate your daily strip output requirement. Low-volume operations (under 500 meters/day) can operate efficiently with semi-automatic equipment. High-volume operations require fully automatic systems with continuous feeding capability.

Fabric Types
Different fabrics require different cutting mechanisms. If your factory processes stretch fabrics, technical synthetics, or heavy denim, ensure the machine is specifically rated for those materials. A machine optimized for woven cotton may perform poorly on spandex blends.

Automation Level
Consider your labor situation, operator skill level, and production flexibility needs. Fully automatic machines offer maximum efficiency but require trained maintenance personnel. Semi-automatic machines offer a more manageable entry point for smaller operations.

Cutting Accuracy
For binding and tape applications where visible width variation is unacceptable, specify machines with ±0.1mm or better tolerance. For less critical applications, ±0.3mm may be adequate.

Number of Cutting Heads
Some applications require cutting multiple strips simultaneously from a single fabric roll. Multi-blade configurations increase throughput but add cost and complexity. Assess whether single or multiple strips per pass better suits your production mix.

Maintenance Requirements
Evaluate blade change frequency, lubrication requirements, and availability of spare parts in your region. The lowest-cost machine with poor local support can quickly become more expensive than a better-supported alternative.

Budget and ROI
Calculate the labor savings, material savings, and quality improvement value of upgrading to automatic cutting. Most factories report full ROI within 12 to 24 months when replacing manual cutting operations with automatic strip cutting machines.

Supplier Support
For the importance of supplier evaluation when buying industrial garment machinery, JockyTech's guide on How to Choose a Computerized Industrial Sewing Machine for Heavy-Duty Production covers key due diligence principles that apply equally to strip cutting machine procurement.

Strip Cutting Machine vs Traditional Manual Cutting

The data is consistent: for any factory operating at meaningful production volumes, the automatic strip cutting machine delivers superior economics, quality, and competitiveness compared to traditional manual methods.

The same logic applies to other pre-sewing automation decisions. As covered in JockyTech's analysis of Industrial Pocket Machine: Everything You Need to Know Before Buying, production bottlenecks often hide in the preparatory stages of garment manufacturing — exactly where strip cutting sits.

Future Trends in Fabric Cutting Automation

The next generation of automatic fabric strip cutting machines is increasingly integrated with broader factory intelligence systems.

AI-Assisted Production Optimization
Emerging systems use machine learning to analyze fabric roll characteristics in real time, automatically adjusting blade speed, tension, and feed rate to maintain optimal cutting quality as material properties vary — even within a single roll.

Smart Factory Integration
Strip cutting machines are increasingly designed to connect directly to factory MES platforms. Production data — meters cut, strip counts, downtime events, blade wear indicators — is transmitted automatically to central management systems, enabling real-time production monitoring without manual reporting.

IoT Monitoring and Predictive Maintenance
IoT-connected machines can transmit vibration data, temperature readings, and power consumption patterns to remote monitoring systems. Predictive maintenance algorithms detect early signs of blade wear or bearing degradation before they cause quality problems or unplanned downtime.

Digital Production Management
Modern strip cutting machines support digital job cards and production recipes stored in the PLC. Switching from one product specification to another requires only selecting the saved recipe — eliminating setup errors and dramatically reducing changeover time.

Energy-Efficient Drive Systems
New servo drive and regenerative braking technologies are reducing the energy consumption of automatic strip cutting machines by 20 to 35% compared to older variable-speed drive systems — important as energy costs and sustainability reporting requirements grow.

These trends are consistent with the broader shift toward automated, data-connected garment factories. For high-volume operations, they represent the difference between reactive production management and proactive quality control.

For context on how automation is reshaping the full garment production pipeline, see JockyTech's coverage of Automatic Garment Packing Machine Solutions for High-Volume Garment Production — strip cutting automation fits into the same integrated automation strategy.

Why Choose JockyTech Strip Cutting Solutions

JockyTech (Zhejiang Jocky Machinery Technology Co., Ltd.) has supplied garment manufacturing equipment to factories in more than 60 countries since 2005. Strip cutting solutions form part of a comprehensive pre-sewing machinery lineup that includes cutting machines, spreading machines, fusing machines, and strip ironing equipment.

Proven Industry Expertise
Two decades of focused work in garment machinery means JockyTech engineers understand the specific demands of strip cutting in shirt factories, sportswear operations, and technical textile production. That application knowledge shapes every product specification decision.

Automation Technology
JockyTech's strip cutting machines incorporate PLC control systems, servo-driven feeding, and precision blade positioning that deliver the accuracy and throughput modern garment factories require. Integration with downstream ironing and folding equipment is supported as standard.

Customization Capability
No two factories have identical requirements. JockyTech works with customers to specify machines matched to their fabric types, strip widths, production volumes, and workflow configurations — rather than applying a one-size-fits-all catalog approach.

Global Support Network
With customers across Southeast Asia, South Asia, the Middle East, Africa, Europe, and the Americas, JockyTech maintains a responsive technical support infrastructure for commissioning, training, spare parts supply, and ongoing service.

Manufacturing Experience
As a member of the Meetlin Group — which celebrated its 20th anniversary in January 2025 — JockyTech benefits from deep manufacturing infrastructure, quality management systems, and supplier relationships built over two decades in the textile machinery sector.

Strip cutting is just one element of a fully optimized pre-sewing workflow. JockyTech's range of Cutting Machines and Pre-sewing Machines covers the complete fabric preparation process, from spreading and fusing through to cut strip delivery at the sewing station.

For factories looking to understand the full spectrum of available cutting solutions — including CNC and oscillating knife systems for other materials — JockyTech's article How to Cut EVA Foam Using a CNC Oscillating Knife Cutter demonstrates the breadth of cutting technology expertise behind the product range.

Conclusion

A strip cutting machine is far more than a simple cutting tool. In a modern garment factory, it is a precision automation system that determines the quality, consistency, and speed of one of the most foundational operations in apparel production.

Manual strip cutting is slow, variable, and labor-intensive. Automatic strip cutting machines solve all three problems simultaneously — delivering strips within ±0.1mm of specification, at throughput rates five to ten times higher than manual cutting, with a fraction of the labor cost.

The right machine for your factory depends on your production volume, fabric types, required accuracy, and integration with downstream sewing operations. The investment decision should be evaluated against the measurable savings in labor, material waste, rejection rates, and production cycle time — most factories see full ROI within 12 to 24 months.

Automation in fabric processing is no longer a competitive advantage available only to large factories. It is increasingly the baseline requirement for any manufacturer competing in international markets where quality standards are high and delivery windows are short.

Ready to explore strip cutting machine options for your factory?

Contact JockyTech's technical team for a detailed consultation, product specifications, and quotation tailored to your production requirements. With over 20 years of garment machinery experience and customers in 60+ countries, JockyTech is equipped to help you identify the right strip cutting solution and support your factory's transition to automated fabric processing.

sales@jockytech.com
0086-13357127700
www.jockytech.com/contact-us/

Frequently Asked Questions

Q1: What is a strip cutting machine?
A strip cutting machine is an industrial textile machine that cuts fabric rolls into continuous strips of precisely controlled widths. It automates the strip cutting process used in garment manufacturing to produce collar tape, waistbands, binding strips, belt loops, and other fabric components.

Q2: How does a strip cutting machine work?
A strip cutting machine feeds fabric from a roll through a tension control system, aligns it using edge sensors or guide rails, then passes it through a cutting unit — rotary blades, oscillating blades, or ultrasonic cutters — set to the required strip width. Finished strips are collected on spools or in bins, or fed directly into downstream ironing or folding equipment.

Q3: What fabrics can a strip cutting machine process?
Most industrial strip cutting machines can process cotton, polyester, nylon, spandex blends, denim, linen, and nonwoven materials. Some fabrics — particularly stretch materials or heat-sensitive synthetics — require specific machine configurations such as tension compensation systems or ultrasonic cutting heads.

Q4: What is the difference between manual and automatic strip cutting?
Manual strip cutting relies on a worker using measuring tools and hand cutters, typically achieving ±1–2mm width accuracy at slow speeds. Automatic strip cutting machines achieve ±0.1mm accuracy at 5–20 meters per minute, with minimal operator involvement. The productivity and quality gap between the two methods is substantial at any meaningful production volume.

Q5: How much does a strip cutting machine cost?
Pricing varies significantly by machine type and specification. Entry-level semi-automatic machines start from approximately USD 1,500 to 5,000. Fully automatic strip cutting machines with PLC control and servo systems typically range from USD 5,000 to 30,000 or more depending on features, speed, and integration with downstream equipment. Contact JockyTech for a quotation matched to your specific requirements.

Q6: How accurate are automatic strip cutting machines?
High-quality automatic strip cutting machines achieve width tolerances of ±0.1mm under normal operating conditions. This compares favorably to manual cutting tolerances of ±1–2mm and is sufficient for the most demanding garment binding and tape applications.

Q7: How often should cutting blades be replaced?
Blade replacement frequency depends on fabric type, cutting speed, and blade material. For standard woven fabrics, tungsten carbide blades typically last 3 to 6 months under continuous production. High-speed steel blades may require replacement monthly in demanding applications. Most industrial strip cutting machines include integrated blade sharpening systems that extend blade life significantly.

Q8: What industries use strip cutting machines?
Strip cutting machines are used in garment manufacturing, sportswear production, uniform factories, home textile production, shoe manufacturing, technical textile operations, and any industry requiring precise continuous cutting of fabric or nonwoven material into strip form.

Q9: Can a strip cutting machine handle multiple strip widths?
Yes. Most automatic strip cutting machines allow width adjustment via the PLC control panel, with digital settings replacing manual blade repositioning. Many machines store multiple width presets, allowing rapid changeover between production specifications — typically in under 10 minutes.

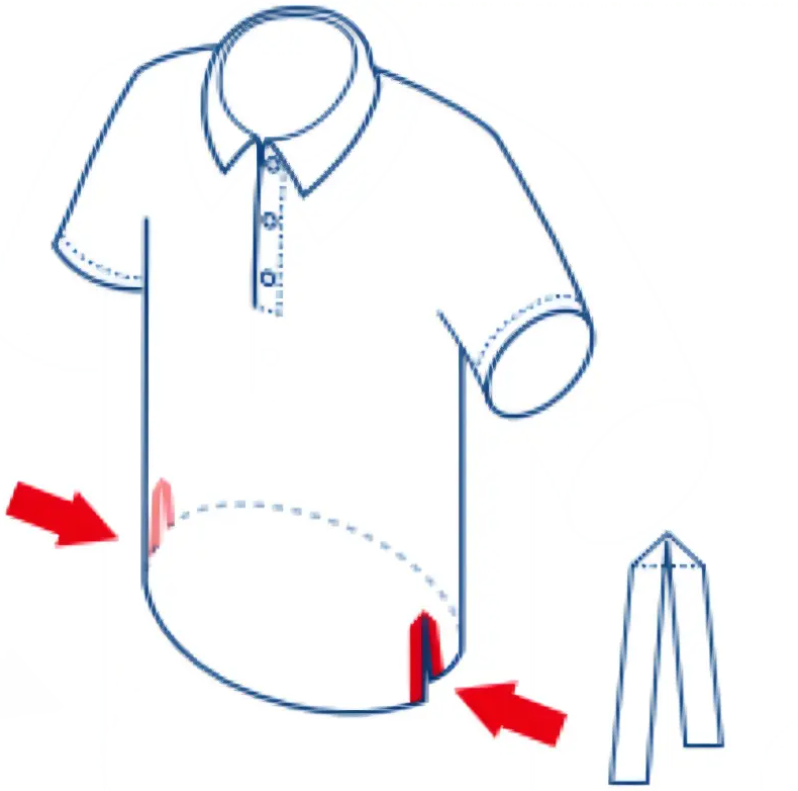

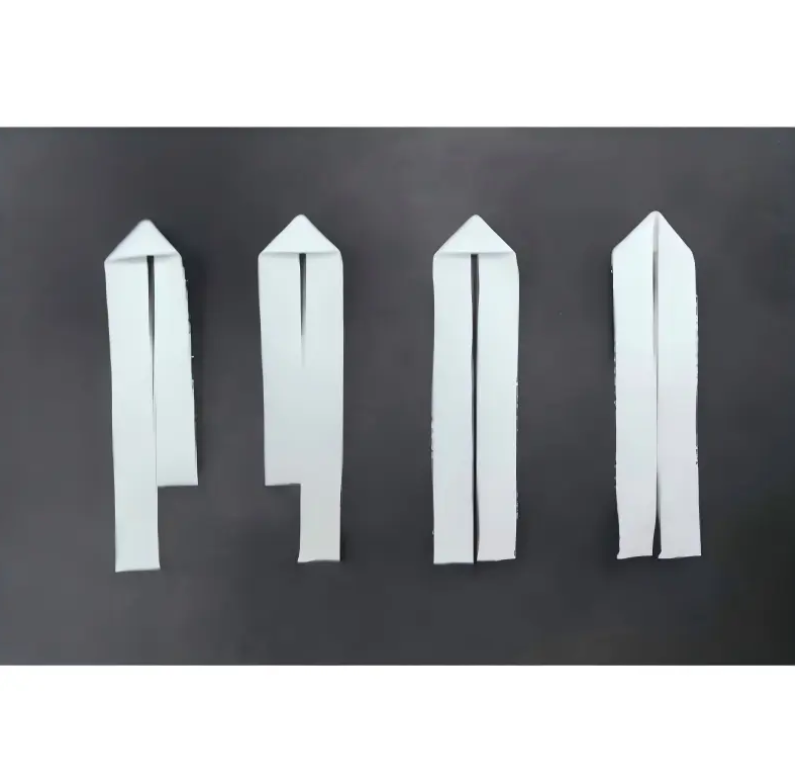

Q10: What is a strip cutting and ironing machine?
A strip cutting and ironing machine combines strip cutting with an integrated folding and ironing section. After cutting, strips pass through a folding guide and steam ironing unit, exiting as finished binding tape or seam tape ready for direct use on the sewing line. This integrated configuration eliminates a separate preparation workstation and reduces handling between processes.
