How to Cut EVA Foam Using a CNC Oscillating Knife Cutter



Why EVA Foam Is Difficult to Cut Accurately

Many manufacturers underestimate EVA foam cutting complexity until they encounter these recurring production problems:

1. Compression under blade pressure EVA foam compresses significantly when downward force is applied. A dull blade or wrong blade geometry will crush the foam rather than cut it cleanly, producing tapered edges and dimensional inaccuracies.

2. Edge deformation and tearing At higher densities or when cutting intricate shapes, foam edges tend to tear rather than shear cleanly. This is especially problematic for visible consumer products like shoe insoles or packaging inserts.

3. Material waste from poor nesting Manual and semi-automatic cutting methods rarely optimize material utilization. For a material priced at $3–$15/m², even 10% waste accumulates quickly across thousands of production cycles.

4. Thickness inconsistency EVA foam sheets are rarely perfectly uniform. Thickness variation of ±0.5 mm is common, which causes problems for contact-based cutting tools that rely on fixed blade depth.

5. Heat sensitivity EVA foam melts and discolors at relatively low temperatures (~80–120°C). Laser cutting and friction-based methods generate heat that burns edges, creates toxic fumes, and degrades the foam's cellular structure.

6. Production efficiency bottlenecks Manual cutting is labor-intensive and inconsistent. Die cutting requires expensive tooling for each new shape. Neither method adapts quickly to design changes — a critical problem in fast-moving product categories like footwear.

Common EVA Foam Cutting Methods: A Full Comparison

Verdict: CNC oscillating knife cutting delivers the best overall balance for industrial EVA foam production — combining high precision, clean cold-cut edges, low tooling cost, and rapid design flexibility.

What Is a CNC Oscillating Knife Cutter?

A CNC oscillating knife cutter (also called a vibrating knife cutting machine or digital cutting machine) is a computer-controlled system where a blade oscillates at high frequency — typically 10,000–20,000 strokes per minute — while a servo-driven gantry traces the cutting path defined by a CAD file.

Core system components:

• Oscillating knife head: The blade moves rapidly up and down, creating a sawing action that shears foam fibers rather than compressing them. This is the key differentiator from a static drag knife.
• Tangential control: The blade angle automatically rotates to remain tangent to the cutting direction, enabling sharp corners and complex curves without distortion.
• CNC motion system: Industrial-grade linear rails and servo motors deliver positioning accuracy of ±0.1–0.3 mm across the entire cutting table.
• Vacuum hold-down table: A segmented vacuum conveyor holds the foam flat during cutting without mechanical clamping, preventing sheet distortion.
• Nesting software: Intelligent CAD/CAM software (such as Optinest or proprietary platforms) calculates the most material-efficient arrangement of shapes on each sheet, often achieving 85–95% material utilization.
• Automatic material feeding: Roll-feed and sheet-feed systems allow continuous or batch production with minimal operator intervention.

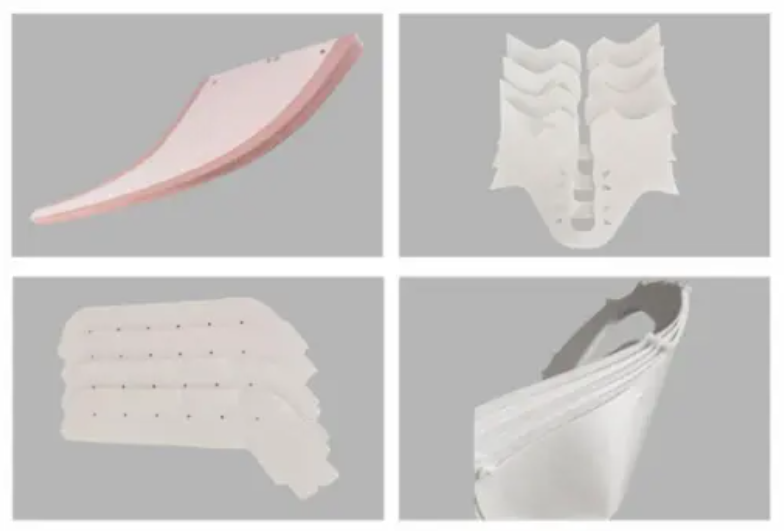

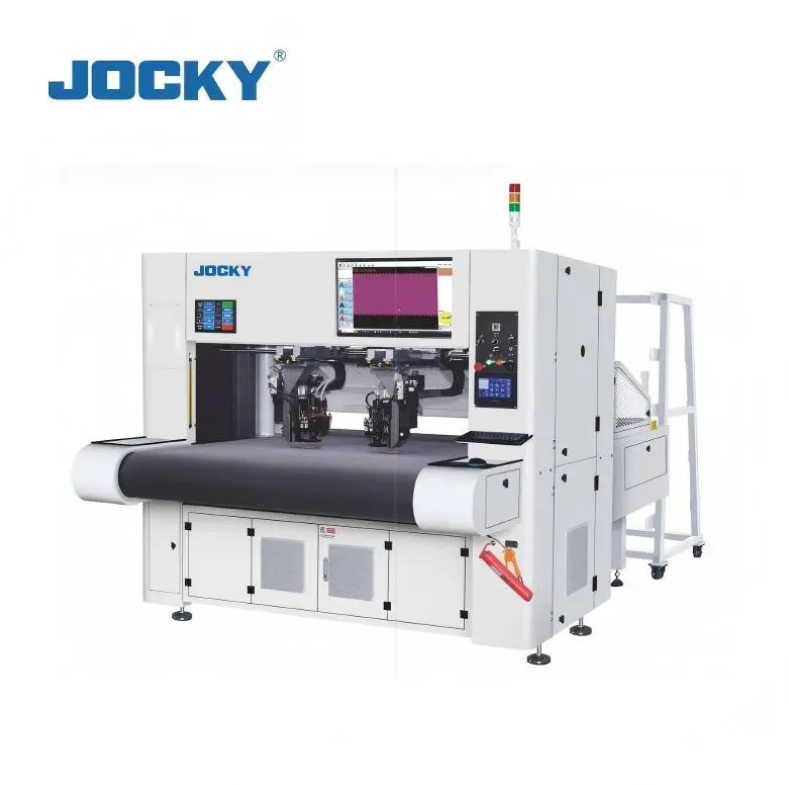

JockyTech's oscillating knife cutting machines, for example, integrate all of these components into a unified platform designed specifically for flexible materials including EVA foam, rubber, leather, and composite materials. Explore JockyTech CNC Knife Cutting Machines →

Step-by-Step Guide: How to Cut EVA Foam Using a CNC Oscillating Knife Cutter

Step 1: Choose the Right EVA Foam

Before cutting begins, verify your material specifications:

• Density: Confirm kg/m³ rating. Low-density foams (under 30 kg/m³) require gentler cutting parameters. High-density EVA (over 80 kg/m³) may need tangential blade configuration.
• Thickness: Measure actual thickness with a digital caliper — not just the nominal spec. Set blade depth to actual thickness + 0.3 mm.
• Surface coating: Laminated or film-faced EVA may require a different blade geometry to cut through the combined layers cleanly.
• Sheet condition: Foam that has been stored rolled or under compression should be allowed to relax flat for 30–60 minutes before cutting.

Step 2: Prepare CAD Files

All cut paths must be prepared as vector files. Accepted formats typically include DXF, AI, PLT, SVG, and EPS.

• Clean your geometry: Remove duplicate lines, open paths, and micro-gaps. Even a 0.01 mm gap in a closed contour can cause the cutter to skip or create a tab.
• Add cut sequence logic: Assign cutting order so interior cutouts are processed before outer perimeter cuts. This prevents sheet movement mid-job.
• Define layers: Separate layers for different operations (cut through, crease/score, perforation) allow the machine controller to assign different parameters per layer.

Step 3: Set Material Parameters

In the machine's cutting software, create or select a material profile for your specific EVA foam:

• Blade type assignment
• Cutting speed (mm/s)
• Oscillation frequency (Hz)
• Blade down-pressure (typically 0–10 N, adjustable)
• Number of passes (most EVA foams cut in a single pass up to 25 mm; thicker material may require two passes)

Step 4: Select Blade Type

Blade selection is one of the most impactful variables in EVA foam cut quality. (See dedicated blade section below.)

• Standard oscillating blades: suitable for 1–20 mm EVA foam
• Tangential knives: preferred for dense EVA (>60 kg/m³) or complex shapes
• Powered rotary knives: optimal for thick block foam (>30 mm)

Replace blades proactively based on manufacturer guidelines — typically every 8–16 hours of cutting time depending on foam density. A dull blade will compress foam before cutting, producing beveled edges and dimensional drift.

Step 5: Optimize Nesting Layout

Load all required shapes into the nesting software and run the auto-nesting algorithm. Best practices:

• Set material grain/direction constraints if required (some EVA foams have directional properties from the extrusion process)
• Allow at least 3–5 mm spacing between nested parts to prevent blade deflection from adjacent cuts
• Reserve border margins of 10–15 mm around sheet edges
• Review nesting result and check material utilization rate — target ≥85%

Step 6: Test Cut

Before committing a full production sheet, always run a test cut:

• Use a scrap piece of the same material and thickness
• Cut one representative shape — ideally the most complex geometry in the job
• Measure cut dimensions with a caliper. Acceptable tolerance: ±0.3 mm for most industrial applications; ±0.1 mm for tight-fit packaging inserts
• Inspect edge quality: should be smooth, vertical, with no melting, tearing, or compression artifacts
• Adjust blade depth, speed, or oscillation frequency if needed

Step 7: Full Production Run

Load the production sheet onto the vacuum table. Confirm:

• Vacuum hold-down is fully engaged before starting
• Sheet is aligned to the machine's registration reference (laser pointer or corner stop)
• Blade depth has been re-confirmed after any parameter changes

Start the cutting job. For long production runs, monitor the first 3–5 sheets actively before leaving the machine unattended.

Step 8: Quality Inspection

Post-cut inspection should include:

• Dimensional check: Sample 5–10% of parts per production batch using digital calipers or a CMM for critical tolerance parts
• Edge inspection: Check for tearing, compression artifacts, or blade drag marks
• Fit check: For packaging inserts and shoe components, perform a physical fit test with the mating component
• Material utilization logging: Record actual waste per sheet to track nesting efficiency over time

Best Blade Types for EVA Foam Cutting

Pro tip: For high-volume footwear midsole cutting where dimensional accuracy is critical, tangential knife configuration consistently outperforms standard oscillating blades on EVA densities above 45 kg/m³.

Recommended Cutting Parameters for EVA Foam

Note: Parameters are starting reference values. Always confirm with test cuts on your specific material batch.

Advantages of Using CNC Oscillating Knife Cutters for EVA Foam

1. No burning or toxic fumes Cold mechanical cutting generates zero heat, protecting material integrity and eliminating the ventilation concerns associated with laser cutting EVA.

2. Minimal material waste Intelligent nesting software routinely achieves 85–95% material utilization — a dramatic improvement over manual and die-cut methods.

3. Fast design changeover New designs go from CAD file to first cut in minutes. No tooling to fabricate, no setup costs. This makes CNC oscillating knife cutting ideal for short runs, customization, and rapid prototyping.

4. Consistent precision at scale CNC motion systems maintain ±0.1–0.3 mm accuracy across thousands of production cycles without operator variability.

5. Low tooling and consumable costs Replacement blades cost $5–$30 each and last 8–16 cutting hours. Compare that to die tooling costs of $500–$5,000+ per shape set.

6. Handles full thickness range From 1 mm gasket foam to 100 mm block foam — a properly configured CNC oscillating knife cutter handles the complete EVA thickness spectrum with blade/speed adjustments, not retooling.

7. Lower labor requirements One operator can manage multiple machines simultaneously. Automatic feeding systems reduce manual sheet handling time by 60–80%.

Learn more about how JockyTech's digital cutting machines support flexible foam manufacturing: JockyTech Foam Cutting Machine Solutions →

CNC Oscillating Knife Cutter vs Laser Cutter for EVA Foam

Bottom line: For EVA foam specifically, CNC oscillating knife cutters are the superior choice in most production scenarios. Laser cutting may be considered for thin decorative EVA film applications where engraving is also required, but for structural foam cutting, the heat risks and thickness limitations of laser technology make it a poor fit.

Industries That Use EVA Foam Cutting Technology

Packaging manufacturers rely on precision EVA foam cutting to create custom-fit protective inserts for electronics, instruments, and industrial equipment. Tight tolerances ensure products don't shift during shipping.

Automotive suppliers cut EVA foam for NVH (noise, vibration, harshness) insulation panels, door trim components, headliner backing, and seating foam — all requiring consistent dimensional accuracy across high production volumes.

Footwear manufacturers use CNC oscillating knife cutters to produce EVA midsoles and insoles. The technology's ability to cut complex 3D profiles from flat sheet stock, with consistent density and edge quality, is essential for meeting footwear performance and comfort specifications.

Sporting goods companies cut EVA foam for helmet liner systems, protective padding, grip tape underlayment, and equipment cases — applications where material density and cut accuracy directly affect safety performance.

Medical device manufacturers require EVA foam components for prosthetic socket liners, orthotic footbeds, and equipment padding. Precision and cleanliness standards are paramount.

Electronics manufacturers use EVA foam for anti-vibration mounts, EMI shielding layer backing, and custom packaging — where foam insert dimensions must match component geometry to within fractions of a millimeter.

Interested in how JockyTech's equipment serves these industries? View Industry Applications →

Common Mistakes When Cutting EVA Foam — and How to Fix Them

1. Using wrong blade type for foam density → Match blade specification to material density; tangential knife for high-density EVA
2. Setting blade depth too shallow → Blade depth should equal material thickness + 0.3 mm to ensure full cut-through without excessive cutting mat wear
3. Ignoring foam relaxation time → Allow compressed or roll-stored foam to relax flat for 30–60 minutes before cutting
4. Skipping test cuts on new material batches → Even the same nominal product from different production lots can vary; always re-validate parameters
5. Running worn blades past their service life → A dull blade compresses foam before cutting; replace blades proactively based on cutting hours, not just visual inspection
6. Not cleaning the vacuum cutting mat → Debris and foam particles in vacuum holes reduce hold-down effectiveness; clean the mat every 4–8 hours of production
7. Poor CAD file preparation → Open paths and duplicate lines cause cut errors; validate DXF geometry before loading
8. Overriding nesting software suggestions → Manual nesting rarely outperforms algorithm results; trust the software for material utilization
9. Ignoring vacuum zone segmentation → For small parts, activate only the vacuum zones under the active cutting area to maximize hold-down on the parts being cut
10. Cutting laminated EVA without blade adjustment → The laminate layer requires modified blade geometry and often a slightly increased oscillation frequency
11. No incoming material QC → Thickness variations in foam sheets should be measured and documented; extreme variation (>1 mm) may require re-parameterization
12. Incorrect feed direction for directional foams → Some EVA foams have extrusion-direction properties; align cut patterns to minimize this effect

How to Choose the Right EVA Foam Cutting Machine

1. Production volume Low-volume or prototype operations may be well-served by entry-level CNC oscillating knife systems with manual sheet loading. High-volume industrial environments require automatic roll-feed or conveyor systems and larger cutting tables (1600×1000 mm or larger).

2. Material thickness range If your product range spans thin 2 mm gasket foam to thick 50 mm block foam, confirm that any machine under consideration supports the full range — both in cutting head travel depth and blade selection options.

3. Required precision For general packaging inserts, ±0.5 mm is often acceptable. For footwear midsoles or medical components, you may need ±0.2 mm — which requires high-grade servo motors, precision linear rails, and tangential knife control.

4. Cutting table size Match table size to your standard sheet sizes. Oversized tables add cost and floor space without benefit; undersized tables force inefficient sheet splitting.

5. Software capabilities Evaluate the nesting and CAD import capabilities of the bundled software. Can it import your CAD formats directly? Does the nesting engine produce competitive material utilization rates?

6. After-sales support For industrial equipment, local or regional service capability matters. Confirm availability of replacement blades, spare parts, and technical support in your region.

7. Future scalability Consider whether the machine can be upgraded with automation accessories (automatic feeding, sheet stacking, barcode integration) as your production volume grows.

JockyTech offers a range of CNC oscillating knife cutters configured for different production scales and material types. Request a Machine Consultation →

Frequently Asked Questions

1. What is the best way to cut EVA foam?

For industrial production, a CNC oscillating knife cutter delivers the best combination of precision, edge quality, and production efficiency. For one-off prototyping, a sharp manual knife or hot wire cutter can work for simple shapes.

2. Can you cut EVA foam with a laser cutter?

Yes, but with significant limitations. Laser cutting generates heat that can melt, discolor, and emit toxic fumes from EVA foam. It also struggles with thicknesses above 10 mm. CNC oscillating knife cutting is generally preferred.

3. What blade should I use for cutting EVA foam?

For general EVA foam (20–60 kg/m³, up to 25 mm thick), a standard or tangential oscillating blade works well. For thicker or denser foam, use a heavy-duty oscillating blade or powered rotary knife.

4. How thick can a CNC oscillating knife cut EVA foam?

Most industrial CNC oscillating knife cutters can handle EVA foam up to 50 mm thick. For block foam up to 100 mm, specialized configurations with powered rotary knife heads are available.

5. How accurate is CNC oscillating knife cutting?

Typical positional accuracy is ±0.1–0.3 mm depending on machine grade, making it suitable for precision packaging inserts, footwear components, and industrial gaskets.

6. Does cutting EVA foam with an oscillating knife produce toxic fumes?

No. Cold mechanical cutting generates no heat and no fumes. This is a key safety advantage over laser cutting.

7. What file formats does a CNC foam cutter accept?

Most machines accept DXF, AI, SVG, PLT, and EPS vector formats. Always prepare clean, closed-path vector geometry before import.

8. How much does a CNC oscillating knife cutter cost?

Entry-level systems start around $25,000–$40,000 USD. Industrial production systems with automation and large cutting tables range from $80,000–$200,000+.

9. How often should I replace the blade when cutting EVA foam?

Blade life depends on foam density and thickness. As a general guide, replace blades every 8–16 cutting hours for standard EVA foam. Monitor edge quality as the key indicator.

10. Can CNC oscillating knife cutters handle other flexible materials besides EVA foam?

Yes. The same platform cuts rubber, polyurethane foam, leather, fabric, composite materials, cork, and many other flexible sheets — making it a highly versatile investment.

11. What is the difference between oscillating and tangential knife cutting?

An oscillating knife moves vertically at high frequency (sawing action). A tangential knife also rotates the blade angle to remain tangent to the cut path, enabling much higher accuracy on complex curves and sharp corners.

12. How does nesting software improve EVA foam cutting efficiency?

Nesting software arranges parts on the sheet to maximize material utilization — typically achieving 85–95% usage compared to 60–75% with manual arrangement. On foam costing $5–$10/m², this directly reduces material cost per part.

13. Can I cut EVA foam in rolls with a CNC cutter?

Yes. CNC oscillating knife cutters with roll-feed systems can process EVA foam from roll form, enabling continuous production with automatic advancement between cuts.

14. What maintenance does a CNC oscillating knife cutter require?

Key maintenance tasks include: blade replacement (every 8–16 hours), cutting mat replacement (every 200–400 hours), linear rail lubrication (monthly), and vacuum pump filter cleaning (monthly). Overall maintenance burden is lower than laser cutting systems.

15. Is CNC oscillating knife cutting suitable for small production runs?

Yes — one of its key advantages over die cutting is zero tooling cost per new design. New shapes can be cut from a CAD file immediately, making CNC oscillating knife cutting equally suitable for 10-piece runs and 10,000-piece runs.
