JK8510C-3830 Automatic pattern template sewing machine

Short Description:

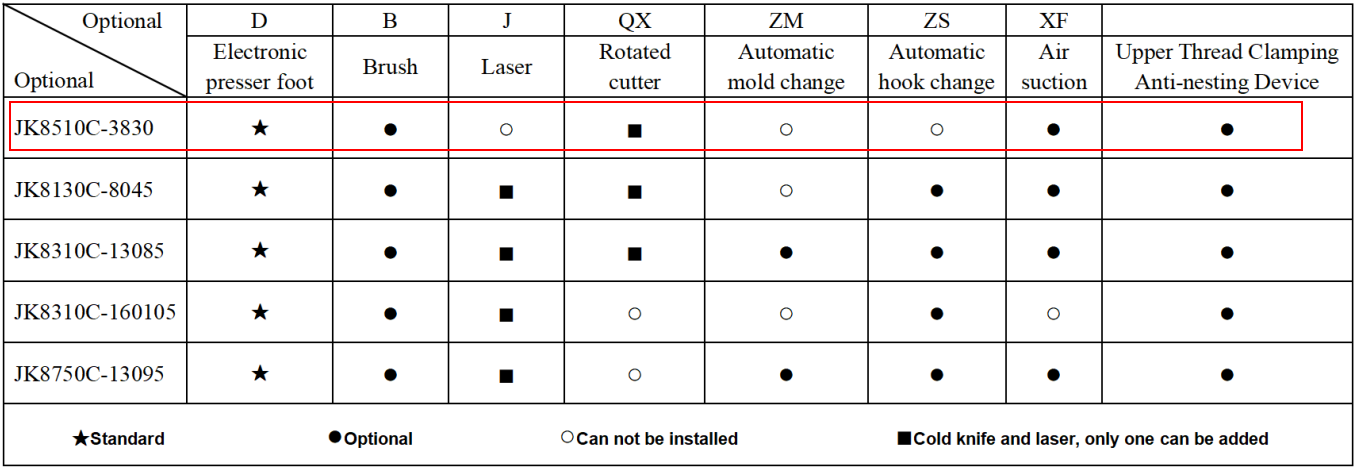

1. Supports the installation of additional functions such as rotating cutters and air suction devices; no need to repeatedly purchase multiple types of machines; reduces cost input.

2. X-Y drive mode: Dual synchronous tape transfer.

3. Standard equipped with electronic middle presser foot, which varies up and down along with the thickness of the fabric

4. Compact size, excellent space adaptability.

5. With various function, it can replace machines such as pattern machines and pocket welting sewing machines.

6. No need for skilled worker, save labor costs; Increase efficiency by at least 10%.

7. Standardized production, unified and beautiful finished product.

Payment term:: T/T, L/C

Port:: Ningbo/Shanghai

Send email to us

Product Detail

Product Tags

Model	JK8510C-3830	JK8510C-3845
Sewing range	380(X)×330(Y)mm	380(X)×450(Y)mm
Tabletop size	1200×1200mm
Knife cutting range	365×256mm
Stitch type	Single-needle 301 lockstitch form
Max. speed	3500rpm/min
Stitch length	0.5-12.7mm
Needle type	DB×1 (#8) 7#-14#
Hook type	Full-rotation 2-fold rotating hook
Intermediate presser foot adjustment range	Lifting amount: 20mm Stroke: Standard 4mm
Program input method	USB
File format	DXF AI PLT DST etc.
Voltage	220V
Air pressure	0.4-0.6MPa
Power	550W
Weight(G.W/N.W)	340/235kgs
Packing size(mm)	1350×1150×1290(L×W×H)
