JK8310C-160105 Oil-free automatic pattern template sewing machine

Short Description:

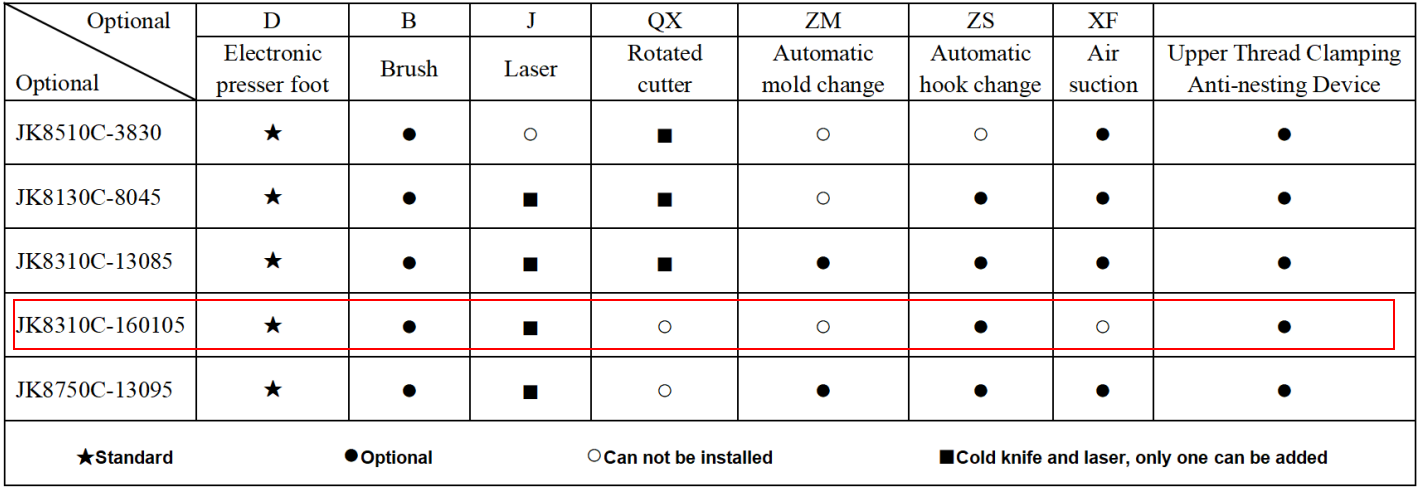

1. Supports the installation of additional functions such as laser cutting and upper thread clamping anti-nesting device; no need to repeatedly purchase multiple types of machines; reduces cost input.

2. X-Y drive mode: Dual synchronous tape transfer.

3. Standard equipped with electronic middle presser foot, which varies up and down along with the thickness of the fabric.

4. Meet the processing needs of larger-sized workpieces:

·The X-axis beam can be extended from 1800mm to a maximum of 2500mm

·The installation of auxiliary plates increases the effective bearing area of the table.

5. Replacing machines such as pattern machines and pocket welting sewing machines.

6. No need for skilled worker, save labor costs; Increase efficiency by at least 10%.

7. Standardized production, unified and beautiful finished product.

Payment term:: T/T, L/C

Port:: Ningbo/Shanghai

Send email to us

Product Detail

Product Tags

Model	JK8310C-160105	JK8310C-180105	JK8310C-200105	JK8310C-250105
Sewing range(X×Y)	1600×1050mm	1800×1050mm	2000×1050mm	2500×1050mm
Tabletop size	2100×2193mm
Laser cutting range	1140×770mm(150W)
X-beam	1800/2000/2300/2500mm
Auxiliary plate	800/1000/1200mm
Stitch type	Single-needle 301 lockstitch form
Max. speed	3600rpm/min
Stitch length	0.5-12.7mm
Needle type	DB×1 (#8) 7#-14#
Hook type	Full-rotation 2-fold rotating hook
Intermediate presser foot adjustment range	Lifting amount: 20mmStroke: Standard 4mm
Program input method	USB
File format	DXF AI PLT DST etc.
Template clamping method	Pneumatic clip type or compression type
Voltage	220V
Air pressure	0.4-0.6MPa
Power	750W
Weight(G.W/N.W)/kgs	664/780	749/634	749/634	749/634
G.W of beam/side panel(kgs)	106kgs (80cm side panel)	106kgs(80cm side panel) /40kgs(beam)	126kgs(100cm side panel) /45kgs(beam)	148kgs(120cm side panel) /48kgs(beam)
Body size(mm)L×W×H	2136×1306×1285	2136x1306x1285	2136x1306x1285	2136x1306x1285
Side panel size(mm)L×W×H	2055×885×240	2055×885×240	2055×1085×240	2055×1285×240
Beam size(mm)L×W×H	-	2920×350×250	3230×345×255	3470×345×255
